Simple Rectifier

DCS Code: 5L30.12 Last Updated: March 27, 2026
Log in to reserve this demo

Purpose

A large vintage vacuum tube rectifier of the type used in battery chargers illustrates thermionic emission and one-way current flow. The clear glass envelope makes the filament (cathode) and plate (anode) easily identifiable, providing a tangible introduction to diode operation before discussing solid-state devices.

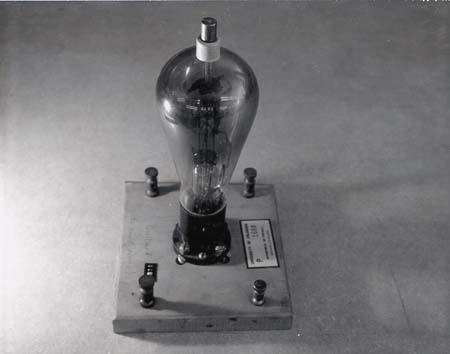

Large vacuum tube rectifier mounted on wooden base with binding posts. Clear glass envelope reveals internal plate structure surrounding the filament. A label is visible on the base.
Figure 1: Vintage rectifier tube of the type used in large battery chargers, mounted for display. The filament and plate are clearly visible through the glass envelope.
