Purpose

Demonstrates RC circuit transient behavior through a visible flashing bulb. Students observe that an uncharged capacitor initially passes current (bulb flashes) but blocks DC once fully charged, connecting exponential charge/discharge theory to a tangible time-dependent process.

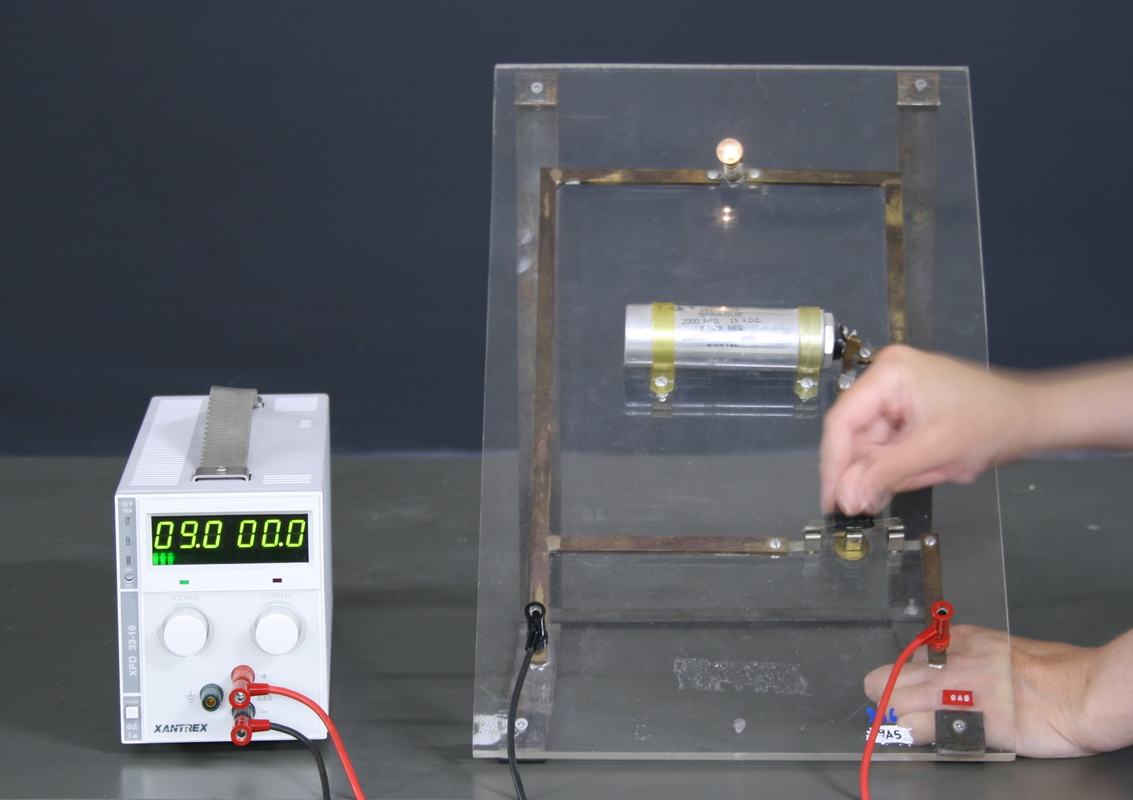

Wooden-framed RC demonstrator board with transparent acrylic panel, large horizontal electrolytic capacitor, small incandescent bulb at top, and knife switch at bottom right, connected to a Xantrex DC power supply reading 9.0V

Figure 1: The RC demonstrator board features a large electrolytic capacitor that charges and discharges through the circuit when the knife switch is operated, causing the bulb to flash and demonstrating transient current behavior in RC circuits.
