Purpose

A 50-farad supercapacitor charged to 2.5 V stores ~156 J — enough to run a toy oil rig for up to 50 minutes. The rig pumps vigorously at first and slows progressively, giving students a visceral demonstration of $U = \frac{1}{2}CV^2$ and exponential RC discharge.

Xantrex power supply displaying 1.5 V and 1.0 A, connected to a black cylindrical supercapacitor in a test tube clamp on a ring stand, SPDT knife switch on a board with copper terminals, and a brass toy oil rig on a wooden base

Same setup with power supply display off, SPDT switch flipped to discharge position, oil rig in motion (slight blur visible on the pump arm)

Figure 1: Charging configuration: Xantrex power supply, 50 F supercapacitor in test tube clamp, SPDT knife switch, and brass toy oil rig.

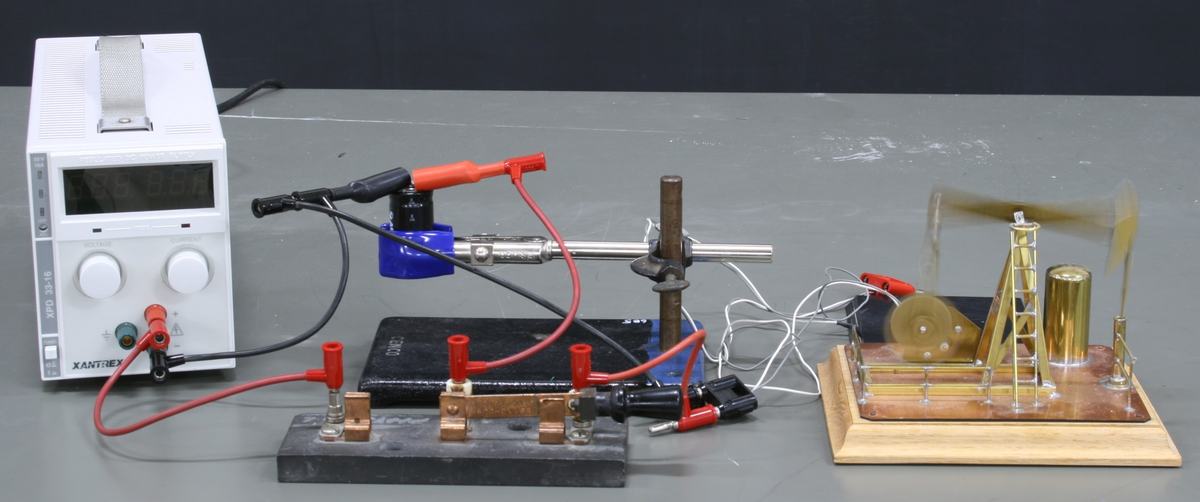

Figure 2: Discharge mode: the switch connects the capacitor to the oil rig. The power supply is off to avoid the appearance of an additional energy source.
