Induction Hemispheres
Purpose
Demonstrates that charge on a conductor resides entirely on its outer surface. A charged sphere is surrounded by conducting hemispheres; the proof plane and electroscope show the outer surface carries the same charge as the inner sphere, while the separated hemispheres have zero net charge.

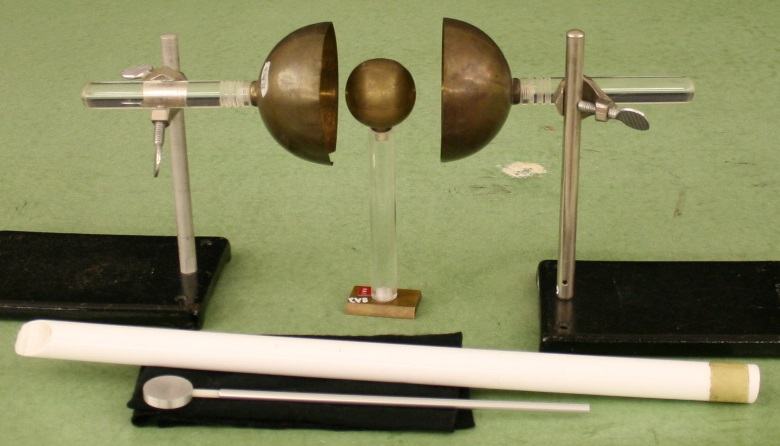

Figure 1:
Two brass hemispheres on ring stands can be brought together around the central brass sphere. The proof plane transfers charge samples to the projection electroscope for measurement.
Demo Apparatus
- 1
