Purpose

A transparent CENCO motor/generator model demonstrates three configurations: series motor, shunt-wound motor, and hand-cranked generator. Students observe torque on a current-carrying coil, the effect of reversing polarity in different winding configurations, and the reversibility of motors and generators via Faraday's law.

CENCO motor-generator model running as a motor: armature is a blur spinning between red (left) and green (right) field coils, mounted on white metal frame with blue base. Xantrex power supply at right reads 6.0V, 00.8A. Four binding posts with red wires visible on top crossbar.

Same CENCO motor-generator at rest: armature coil clearly visible between red and green field coils, power supply reads 6.0V, 00.0A

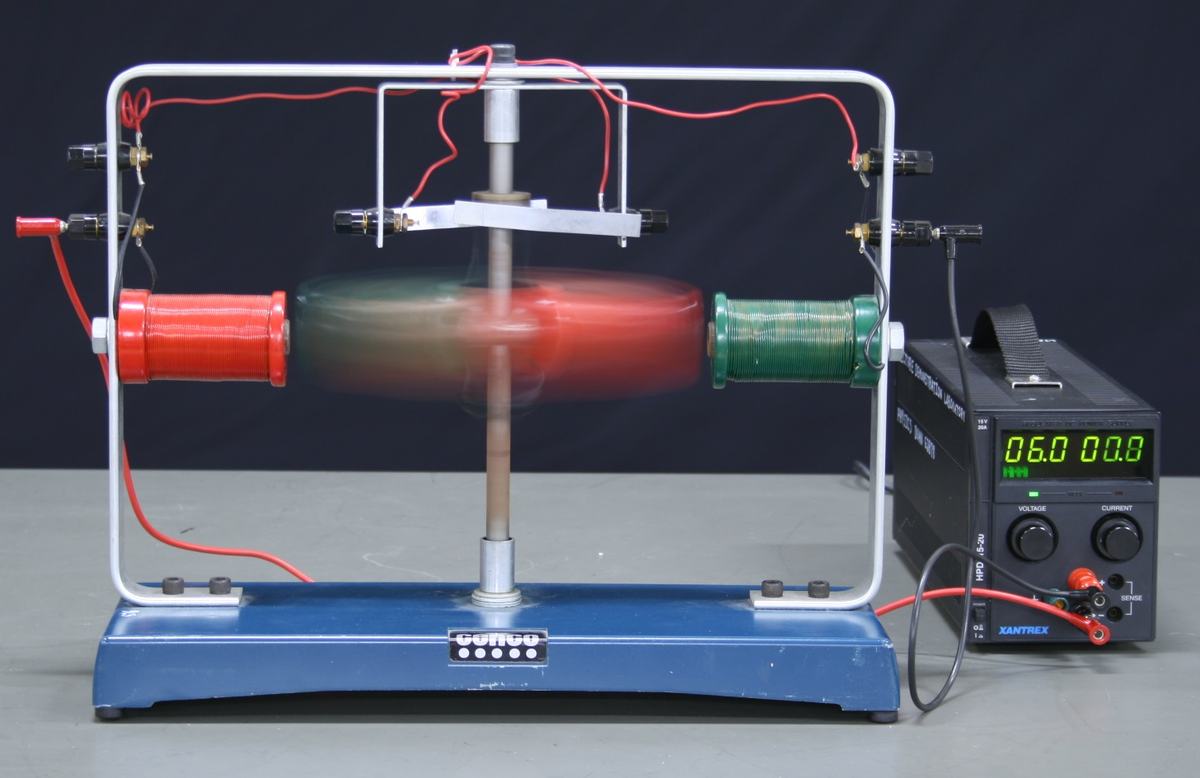

Figure 1: Motor running: the armature spins between the red and green field coils. Binding posts A, B, C, D on the crossbar allow series, shunt, and generator configurations.

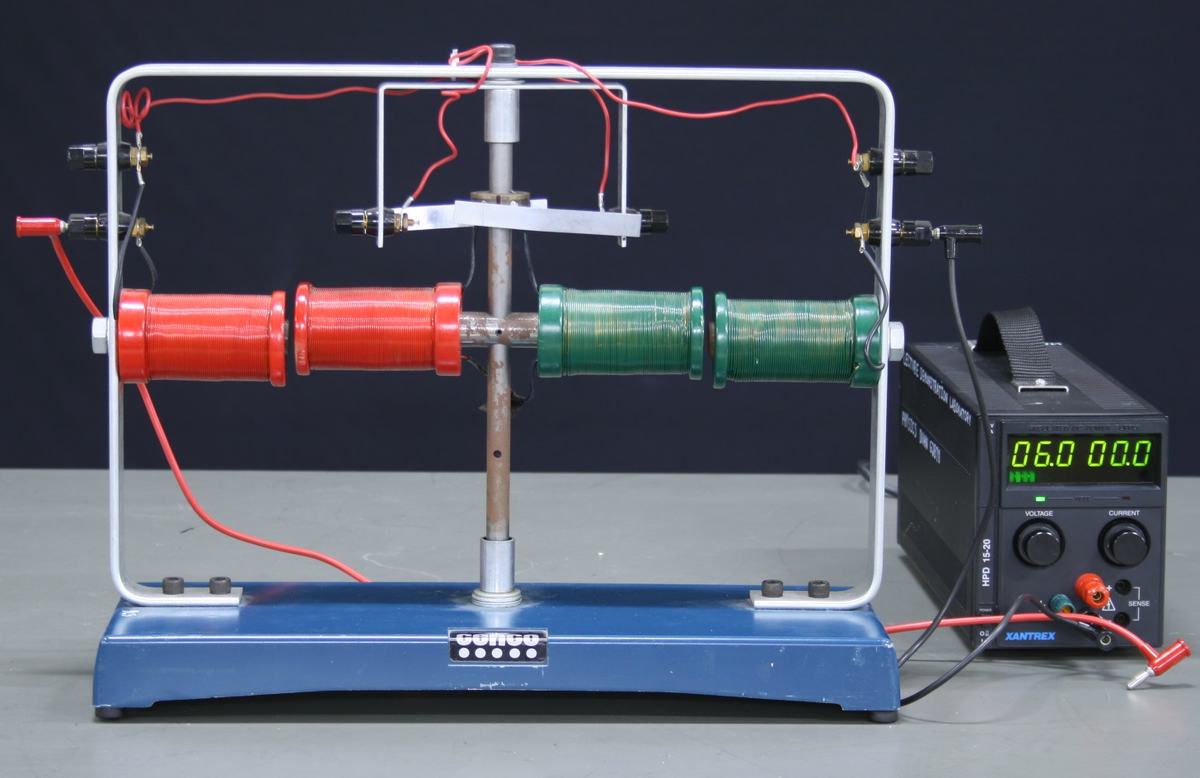

Figure 2: Apparatus at rest, showing the armature coil, commutator, and field coil arrangement.
