Chainhoist

DCS Code: 1M20.10 Last Updated: March 27, 2026
Log in to reserve this demo

Purpose

Demonstrates mechanical advantage in a differential pulley (Weston hoist). Two locked sheaves of slightly different radii produce a large force multiplication, illustrating how simple machines trade distance for force.

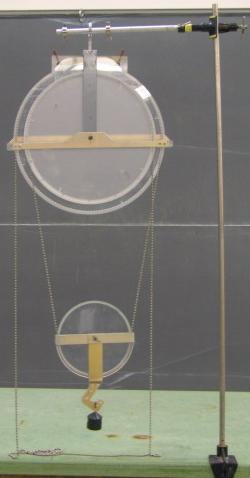

Differential chain hoist with two large transparent sheaves on a wooden crossbar (upper block), ball chain connecting to a smaller transparent lower block with a mass attached, mounted on a bench clamp stand
Figure 1:
