Purpose

Demonstrates that spin-1/2 particles require a 720° rotation (not 360°) to return to their original state. A board connected by strings to fixed points becomes tangled after one full rotation and cannot be untangled, but after two full rotations the strings can be disentangled without rotating the board — a visual analog for the double-cover relationship between SU(2) and SO(3).

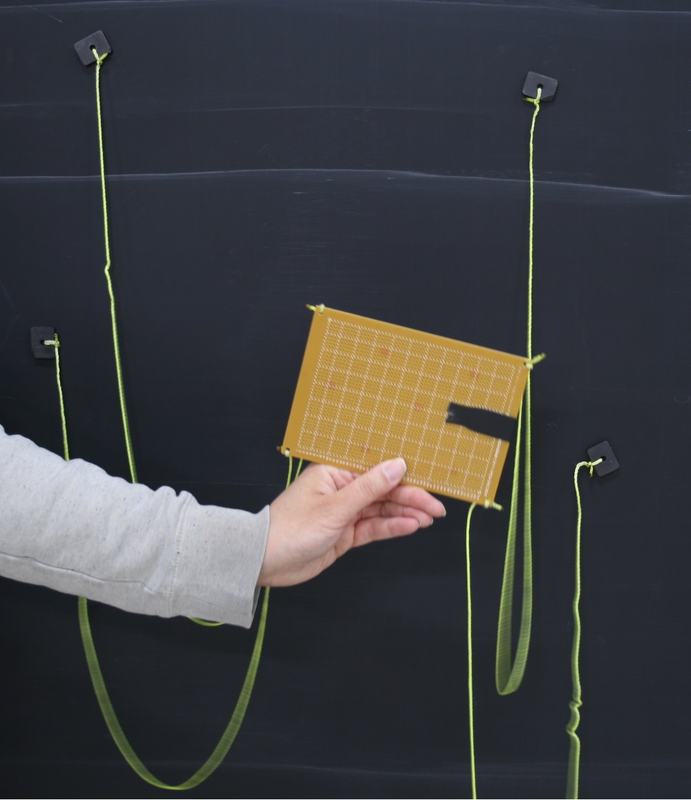

Hand holding rectangular orange perforated board with four yellow-green strings attached to corners, extending to black magnetic anchors on dark surface

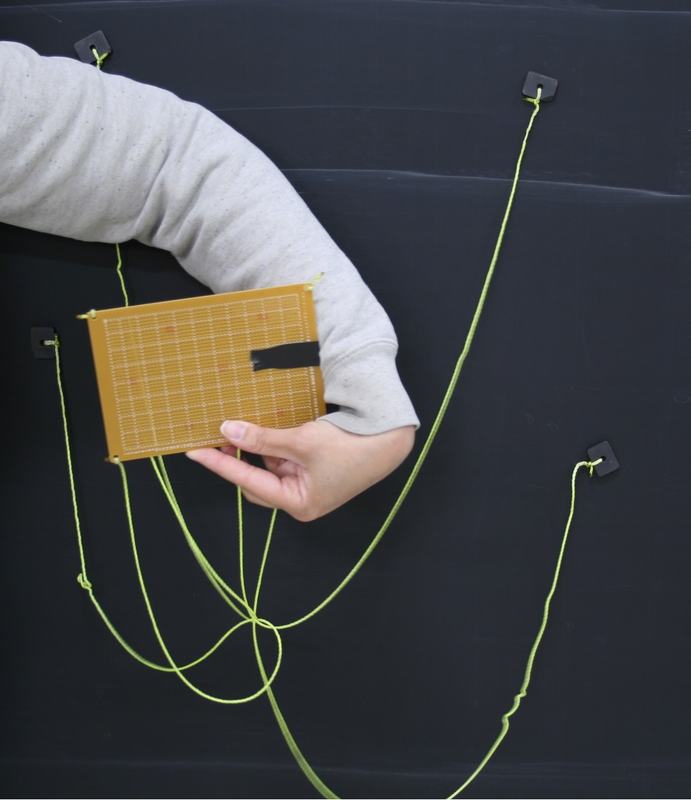

Hand holding orange board with yellow-green strings showing moderate entanglement after partial rotation

Hand positioning orange board with yellow-green strings showing complex twisted configuration

Close view of hand holding orange board with highly twisted yellow-green strings in complex loops

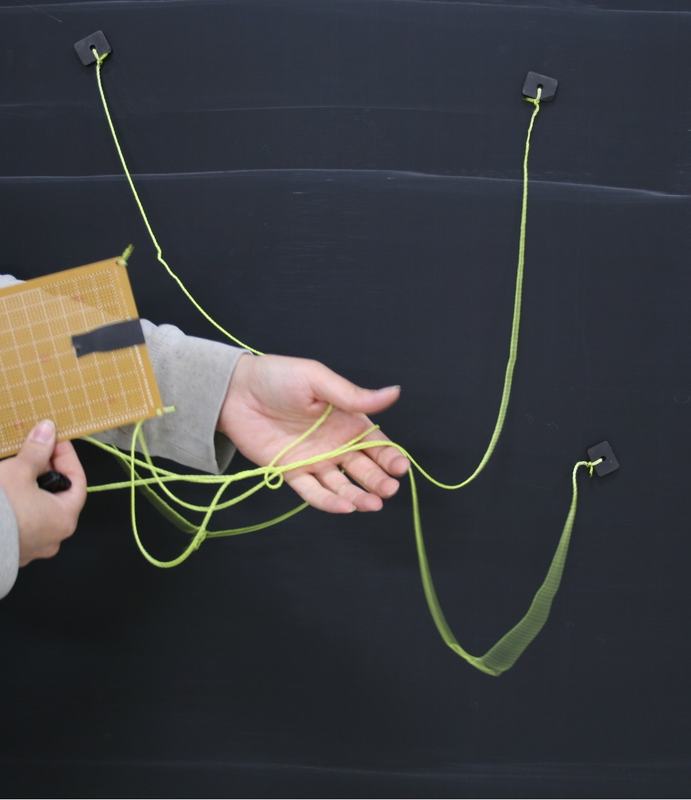

Hand manipulating twisted yellow-green strings with orange board below, strings forming complex loops and crossings

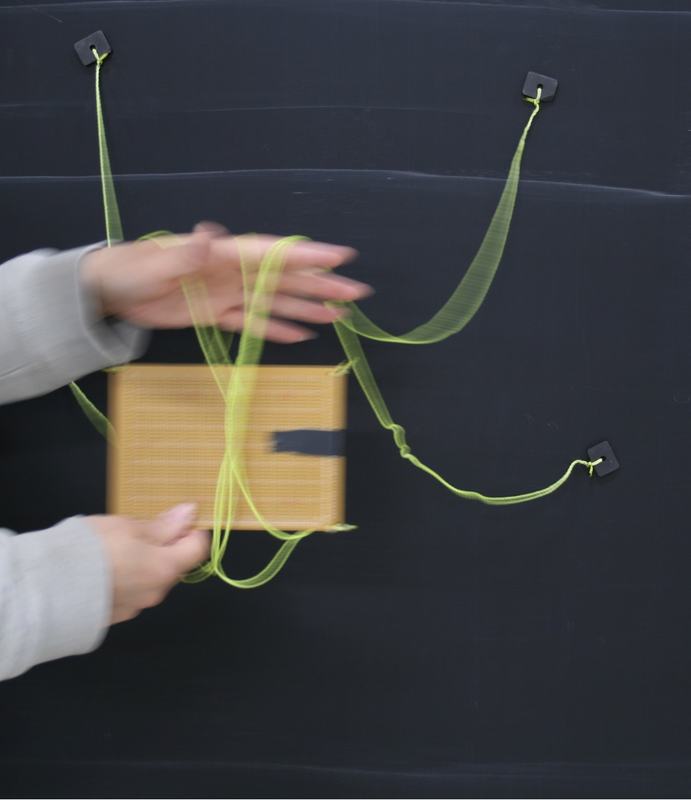

Blurred motion of hands manipulating orange board and yellow-green strings during untangling maneuver

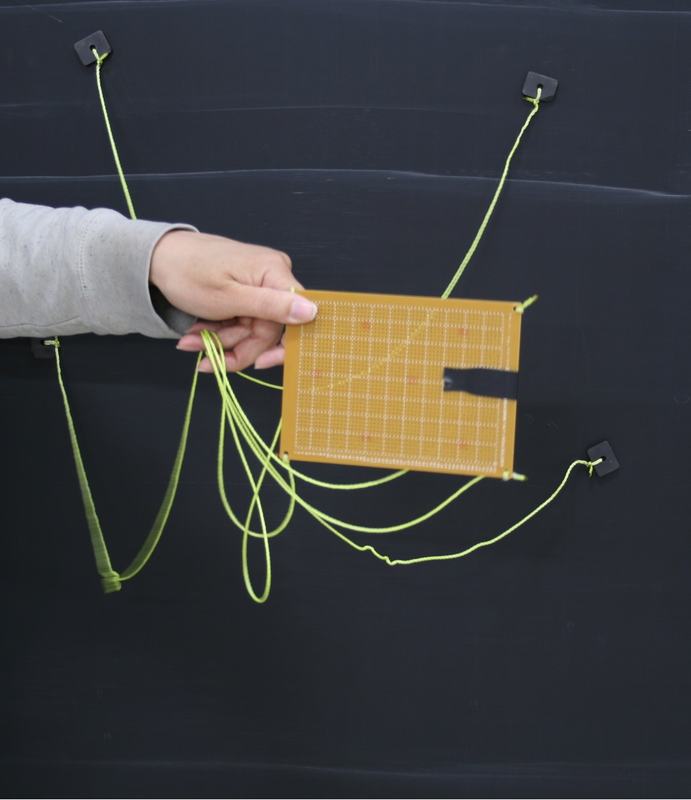

Hand holding orange board at angle with yellow-green strings showing partial disentanglement in progress

Hand holding orange board vertically with four yellow-green strings fully unentangled and straight, extending to magnetic anchors

Figure 1: Initial configuration with the vector board held vertically and strings unentangled, ready to demonstrate the topological properties of rotations in three dimensions.

Figure 2: After one 360° rotation, the strings are entangled and cannot be untangled without rotating the board, modeling the sign change in a fermion wavefunction.

Figure 3: Midway through the second 360° rotation (total 540°), demonstrating the increased string entanglement that will enable the topological untangling.

Figure 4: After completing the full 720° rotation, the strings appear highly tangled but possess the topological property allowing disentanglement without board rotation.

Figure 5: Beginning the untangling process by gathering the twisted slack from the four strings, preparing to pass the board through the loops.

Figure 6: Moving the board underneath and behind the string slack, demonstrating the critical topological maneuver that resolves the entanglement.

Figure 7: Moving the board to the right while allowing strings to fall to the left, completing the untangling sequence without board rotation.

Figure 8: Final configuration with strings completely disentangled, demonstrating that a 720° rotation returns a spin-1/2 system to its original state.
