Ice Fountain

DCS Code: 4C20.32 Last Updated: March 27, 2026
Log in to reserve this demo

Safety Warnings

Purpose

Crushed ice is forced through a conical nozzle by a hydraulic jack. The pressure melts the ice, and it refreezes into a solid cylinder as it exits the nozzle — a dramatic demonstration of regelation and the negative slope of water's solid-liquid phase boundary.

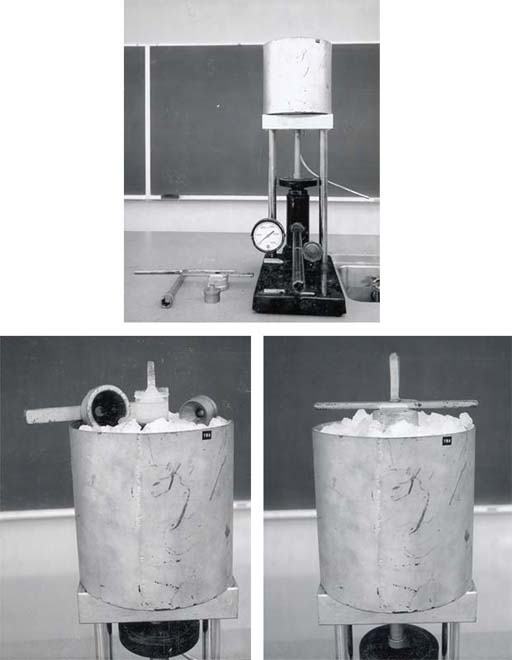

Three views of the ice fountain apparatus: top shows the hydraulic jack with pressure gauge, central cylinder, and conical nozzle on a demo bench with tools; bottom-left shows the outer cylinder filled with crushed ice and the nozzle visible at top; bottom-right shows an extruded ice cylinder emerging from the nozzle
Figure 1:
Equipment
