The apparatus generates pressures up to 80 psi during compression. Ensure all connections are secure and the cylinder is rated for this pressure. Do not attempt to open valves or disconnect components while the system is pressurized.

Purpose

A piston-cylinder apparatus with projected pressure and temperature gauges demonstrates the relationship between pressure, volume, and temperature in a gas. Students observe pressure and temperature rise during compression, cooling at constant volume, and cooling below ambient when the valve is opened — illustrating adiabatic, isochoric, and isobaric processes in sequence.

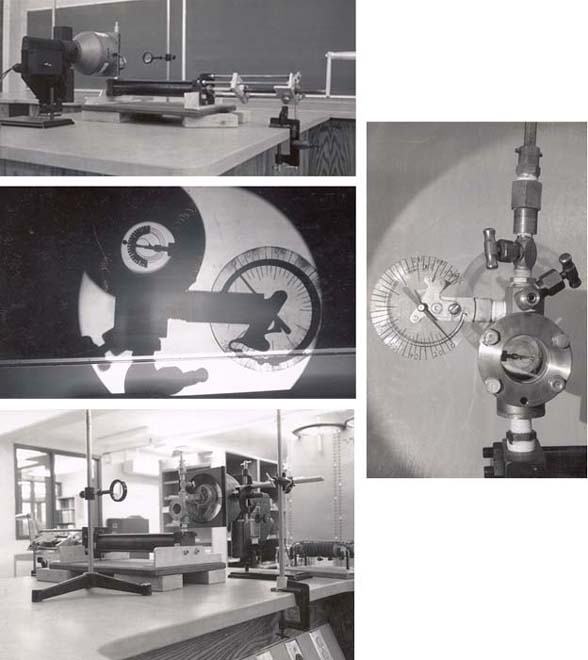

Composite of four photos: top-left shows the PVT demonstrator with fiber optic lamp and projection lens on a demo bench; middle-left shows the projected image of the pressure gauge and bimetallic thermometer on a screen; bottom-left shows a closer view of the piston-cylinder apparatus with crank handle; right shows a detail of the pressure chamber with gauge and valves

Figure 1:

Safety Warnings

Warning: Pressure Buildup

Purpose
