Lycopodium powder is highly flammable when dispersed in air. Keep away from open flames, hot plates, and electrical sparks. Use minimal quantities and clean up spills immediately. Consider using non-flammable chalk dust as a safer alternative for routine demonstrations.

Purpose

A steel ball rolls down a tilted curved trough, leaving a sinusoidal trace in lycopodium powder. The half-wavelengths mark equal time intervals, and measuring successive spacings shows they increase by a constant amount — confirming uniform acceleration.

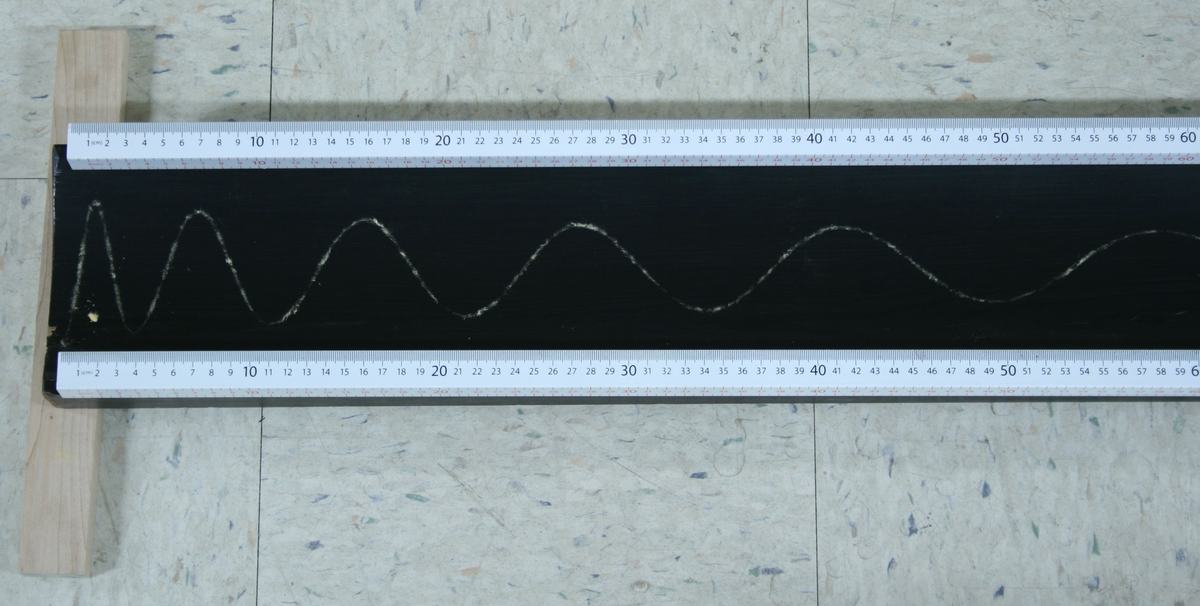

Black wooden trough with a sinusoidal white powder trace whose wavelength increases from left to right, flanked by two meter sticks, with a wooden block elevating the left end

Figure 1: Sinusoidal trace left by a steel ball rolled in lycopodium powder. The increasing half-wavelength spacing from left to right demonstrates constant acceleration down the incline.

Safety Warnings

Warning: Lycopodium Powder Handling

Purpose
