Purpose

Laser light through circular apertures (0.04 and 0.08 mm) and mesh screens produces Fraunhofer diffraction patterns, demonstrating light's wave nature. Students observe Airy patterns and two-dimensional grating patterns, and verify the inverse relationship between aperture size and pattern size.

$Green laser diffraction pattern from mesh showing complex multi-directional array of bright spots against dark background$

$Green laser diffraction pattern with cross-shaped symmetry showing bright central core and regular horizontal and vertical arrays of spots$

$Leybold diffraction slide labeled "0.04 0.08mm CIRCULAR APERTURES DIFFRACTION PATTERNS" mounted in metal slide holder on adjustable carriage$

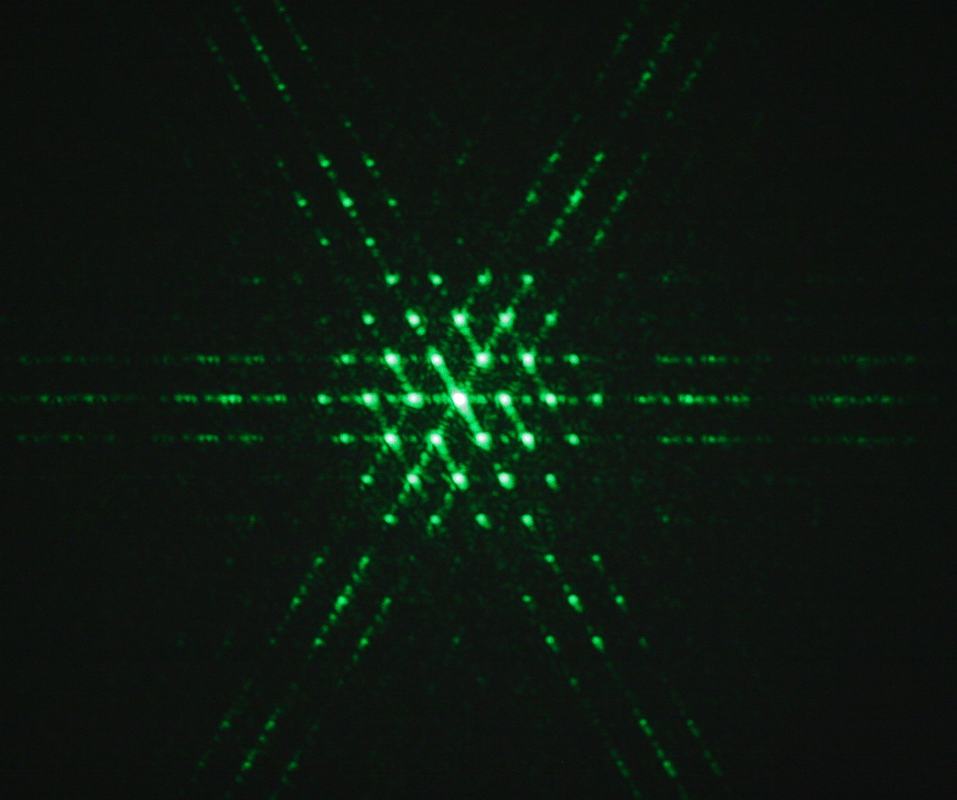

Figure 1: Diffraction pattern from a mesh screen showing a complex multi-directional spot array, reflecting the two-dimensional periodicity of the mesh structure.

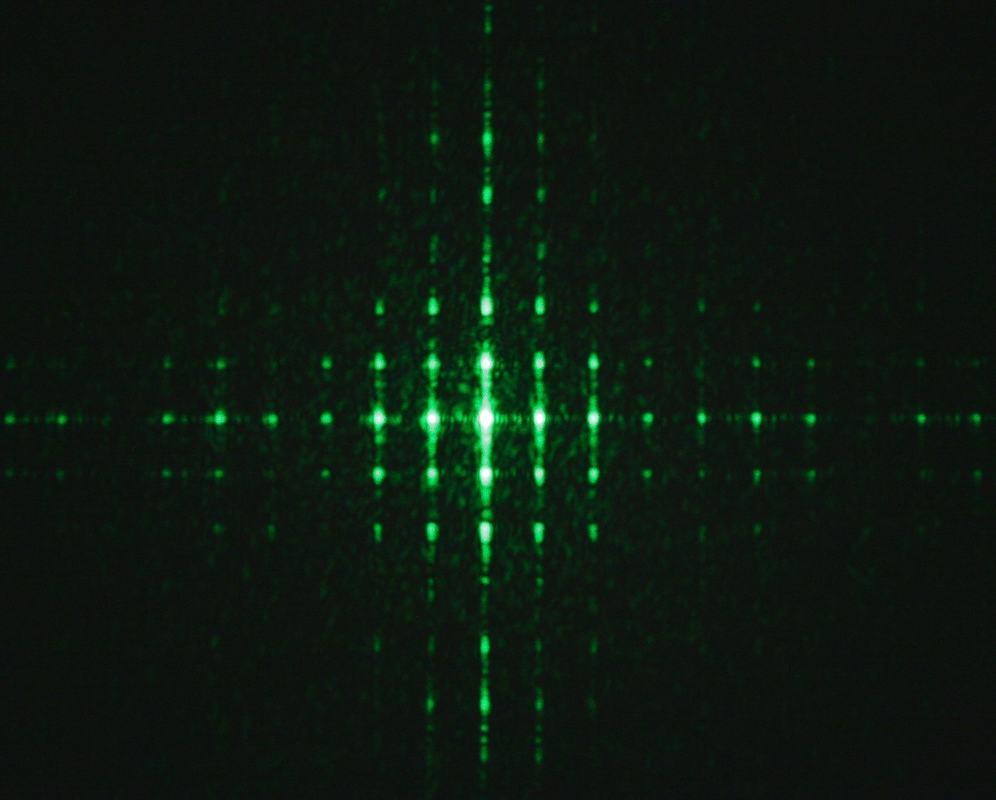

Figure 2: Square mesh diffraction pattern showing the characteristic cross-shaped spot array. Spot spacing is inversely related to the mesh spacing.

Figure 3: Leybold diffraction slide with 0.04 mm and 0.08 mm circular apertures, mounted in the slide holder on the adjustable carriage.

Optical Slider

1
Polished Steel Plate

1
Horizontally Adjustable Optical Slider

1
2 in 4 Slot Slide Holder

1
